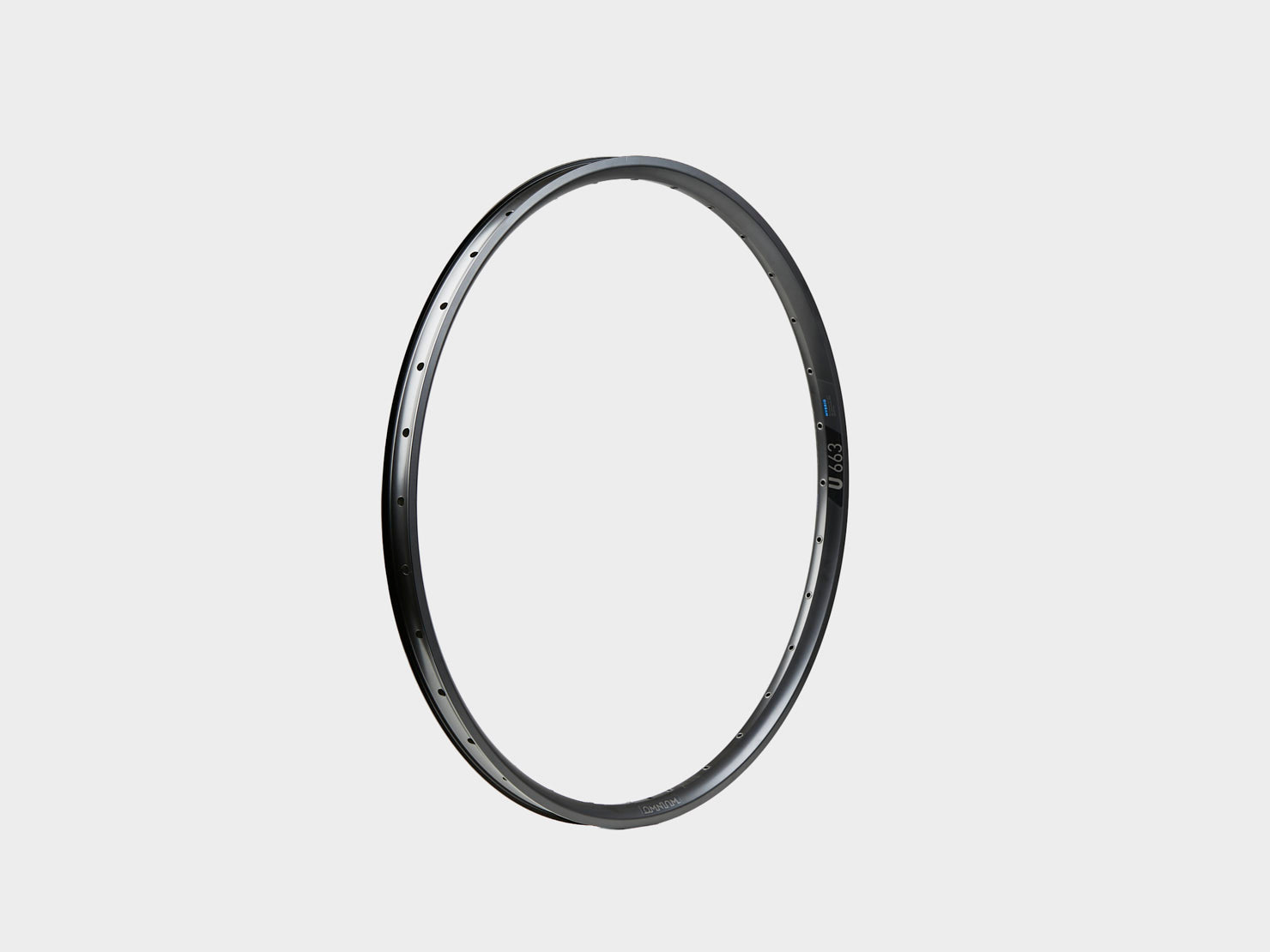

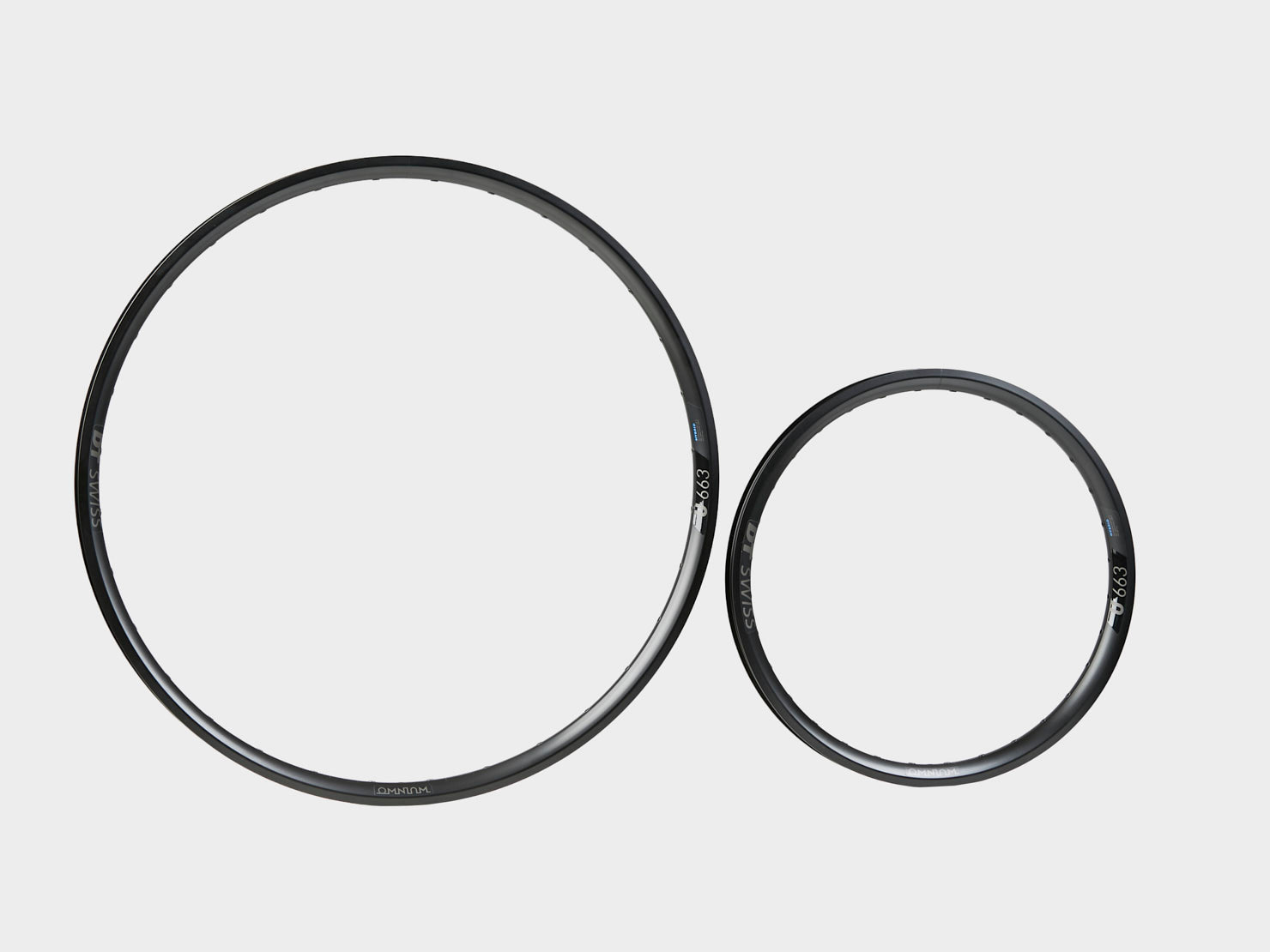

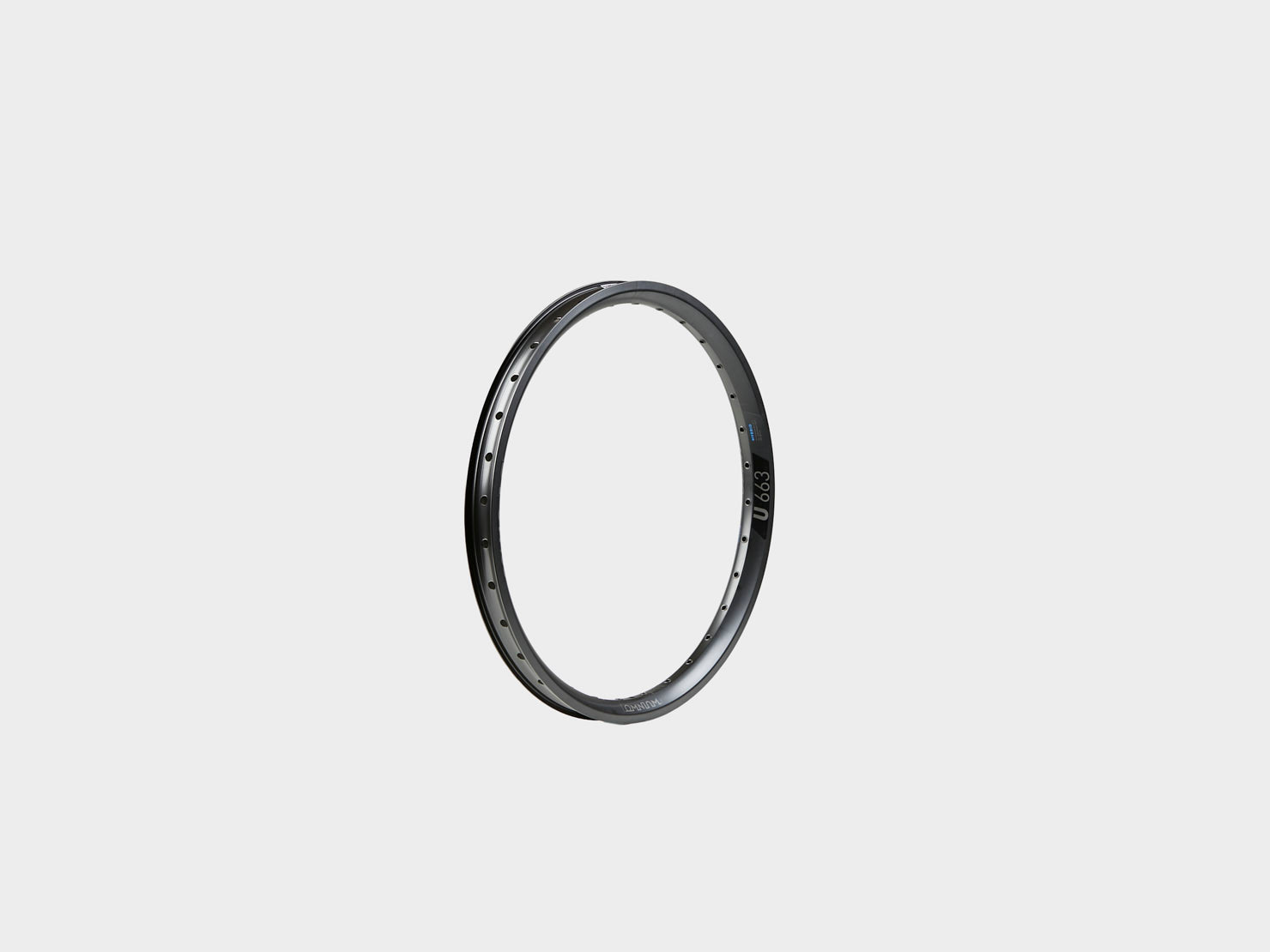

Omnium by DT Swiss Cargo Rim – Built for Urban Load-Bearing Precision
Designed to meet the daily demands of cargo cycling, the DT Swiss U663 is the foundation of the Omnium by DT Swiss wheelset — purpose-built for riders who carry more.
Crafted from high-strength aluminum and reinforced for maximum resilience, the Omnium By DT Swiss Rim is designed for smooth, confident handling whether you’re transporting tools, groceries, or gear. Tailored for Omnium’s Mini, Mini-Max, and Cargo frames, this rim provides the structural integrity needed for heavy-duty urban riding—day in, day out.
Key Features:
Omnium-Specific Design: Engineered to integrate seamlessly with Omnium Mini, Mini-Max, and Cargo bikes
Heavy Load Capacity: Supports up to 180 kg per wheel when paired with DT Swiss spokes and hubs
Reinforced Aluminum Construction: Built to endure the stress of fully loaded rides and rough urban terrain
DT Swiss Precision: Developed in partnership with DT Swiss for optimal performance and longevity
FRONT
REAR
Weight
500g
760g
Max Carrying Capacity
180kg
180kg
ASTM Classification
2
2
Approved for E-Bikes
Yes (max. 32Km/h or max. 250W)
Yes (max. 32Km/h or max. 250W)
Material
Aluminium
Aluminium
Rim Joint
Pin Joint
Pin Joint
Tire Interface
Hooked / Crotchet tubeless TC
Hooked / Crotchet tubeless TC
Brake Interface
Disc
Disc
Rim Diameter
20″
29″
Reference Diameter ERD
383mm
599mm
Inner Width
22mm
22mm
Outer width
25mm
25mm
Rim Height
22mm
22m
Number Of Holes
32
32
Spoke Bore Rim
Black eyelet
Black eyelet
Valve hole
Presta
Presta
